ProteaBracket™

A Versatile Solar PV Component for Attachment to Face-Fastened, Trapezoidal-Rib Metal Roof Profiles.

ProteaBracket Brochure

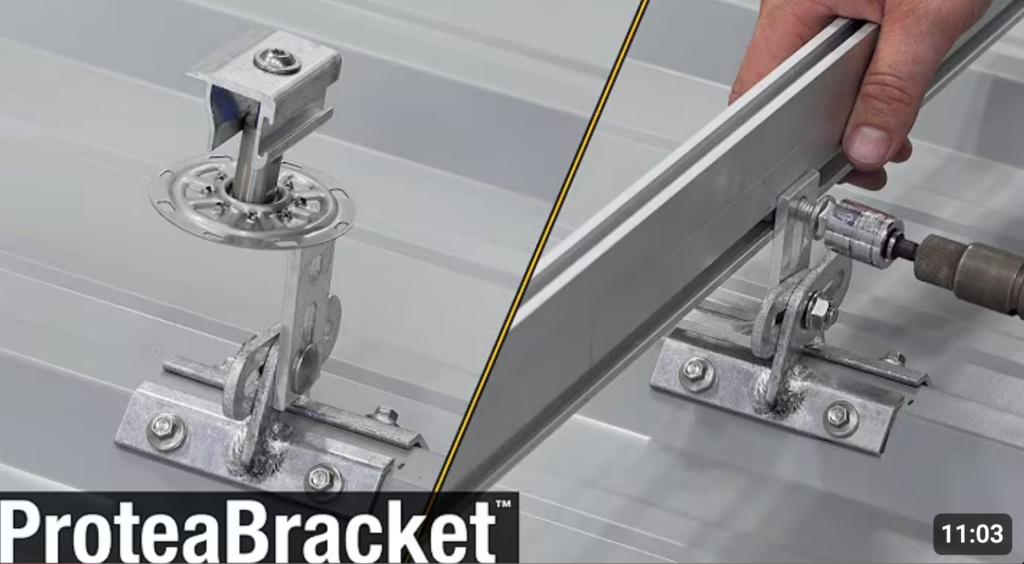

The ProteaBracket fits most trapezoidal sheet profiles, including pre-assembled foam core panels (IMPs - Insulated Metal Panels).

  • Adjustable attachment base to accommodate varying rib widths, heights, and angles with multiple module mounting options
  • Attached to the sheeting only, no messy sealants and comes with a factory-applied, EPDM pad to ensure quick installation and a weather-proof fit

ProteaBracket is mounted directly onto the crown of the trapezoidal sheet using stainless-capped screws (provided) or Bulb-Tite rivets (sold separately). It has been rigorously tested for load-to-failure results in sheeting only.

Pair with the PVKIT® for a rail-less solution – also ideal for both side-bolted and bottom-bolted rail mounting.

For PV installations with extreme snow load conditions (see load tables for limitations).

Be sure to check out the many other features on the bracket overview page.

protea bracket metal roof solar bracket

MSRP:

Master Box: $8.48 Qty: 100

*Pricing above is in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Use Our Project Configurator

protea bracket metal roof solar bracket

ProteaBracket Works for the Following Roofs:

Spacer

Exposed-Fastened Trapezoidal

protea bracket solar metal roofing bracket

ProteaBracket Product Specifications:

  • 34% lighter than similar stainless steel alternatives – saves on shipping
  • Stronger L-Foot
  • L-Foot allows for side-mount rails in its vertical orientation OR bottom-mount rails or PVKIT in its horizontal orientation
  • Corrosion-resistant materials
  • Adjustable–fits rib profiles up to 3″
  • Peel-and-Stick prevents accidental shifting during installation
  • Fully pre-assembled
  • 4 self-piercing screws included
protea bracket solar metal roofing bracket

Is the ProteaBracket the Best Choice for Your Roof Profile?


ProteaBracket fastens into the sheeting and accommodates rib profiles with top width dimensions of up to 3” (76 mm).

Select the Right Fastener

Use ProteaBracket to Attach Solar PV With and Without Rails to Exposed-Fastened Metal Roofs

ProteaBracket and Rails

ProteaBracket and PVKIT® (Rail-Free)

The WRONG WAY to Attach Solar PV With ProteaBracket to Exposed-Fastened Metal Roofs:

installation solar panels on metal roof with bracket

How to Install ProteaBracket on Your Roof Profile*

No surface preparation is necessary. Simply wipe away excess oils and debris; peel the release paper, align and apply.

Secure through the pre-punched holes using the stainless-capped, self-piercing S-5! fasteners or Bulb-Tite rivets.The ProteaBracket is mounted directly onto the sides of the crown of the roof panel, enabling module or rail attachment anywhere along the ribs.

*See more detailed installation instructions in the PDF download below.

ProteaBracket Installation Instructions

installation solar panels on metal roof with bracket

Have More Questions?

Submit your information by clicking the form below, and we’ll get back to you almost immediately.

FAQs

How does S-5! ensure its brackets are weathertight?
Should I use additional sealant around the brackets?
What types of profiles do your brackets fit?
How do I find out what my substrate is / and then how do I determine the best method to attach my brackets?
