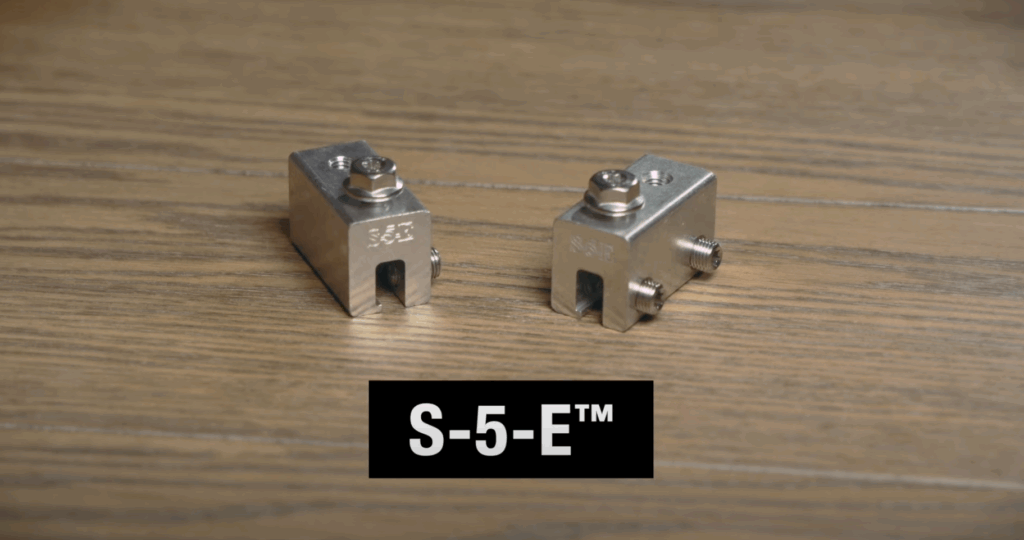

S-5-E Clamp

Designed for Traditional 1" and Most 1.5" Tall European-Style, Double-Folded Standing Seam Profiles in Zinc, Stainless, Aluminum and Coated Steel.

Download S-5-E Brochure

Is the S-5-E the Right Clamp for Your Metal Roof Profile and Project?

The S-5-E (“E” is for European) is an economical, non-penetrating, standing seam metal roof (SSMR) clamp. Designed for double-folded SSMR popular in Europe and the world over, the E also fits Butler’s MR-24®.



Minis Available

The E Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required.

Rigorous load testing is performed on both standard and Mini clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

Choose the E to mount a variety of utilities with traditional seam dimensioning (< ½” seam fold (13 mm) to your double-folded, SSMR. Be sure to check out the many other features on the clamp overview page.

S-5-E Clamp | S-5! Metal Roofing

Pricing Starts at $4.05 / $2.88 (Mini)

* MSRP is in U.S.D. based on 1 Master Box piece price in U.S./CAN regions. Prices may vary in other regions. Call your local distributor for pricing.

Use Our Project Configurator

S-5-E Clamp | S-5! Metal Roofing

The S-5-E Works for the Following Roofs:

Spacer

Standing Seam Double-Fold

S-5-E

S-5-E Mini

Spacer

Product Specifications:

  • Comparable strength to S-5-U or S-5-V but at a lower cost
  • Compatible with Butler’s MR-24® and other double-folded, standing seam metal roof
  • Snow retention and other heavy-duty applications
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included
Spacer

Is the S-5-E the Right Choice for Your Roof Profile?

How to Install the S-5-E Clamp on Your Roof Profile*

Installation is as simple as placing the clamp on the seam and tightening the round point Torx Drive (T30) setscrews to the specified tension. Then, affix ancillary items using the bolt (provided with standard E clamp; sold separately for the E Mini).

*See more detailed installation instructions in the PDF download below.

S-5-E Installation Instructions

Have More Questions?

Submit your information by clicking the form below, and we’ll get back to you almost immediately.

FAQs

How much load will S-5! clamps hold?
How much load will Mini (one setscrew) clamps hold in the parallel load orientation?
What spacing should be used with S-5! clamps for PV assemblies?
How can I be sure that S-5! setscrews won't damage my panel?
