Mount HVAC, Solar PV, and More Onto Exposed-Fastened, Trapezoidal-Rib Roof Profiles

The RibBracket is the perfect attachment solution for specific North American trapezoidal, exposed-fastened metal roofs.These profiles are commonly referred to as R-Panel or PBR-Panel.

Mount HVAC, walkways, railed PV systems and more to your metal roof. You can also pair this metal roof bracket with the S-5-PVKIT® for rail-less (direct-attach™) solar PV mounting. When additional height is desired with the S-5-PVKIT, use RibBracket III.

With the RibBracket, there are no messy sealants to apply. The factory-applied, EPDM rubber gasket weatherproofs and makes installation easy. The reservoir conceals EPDM from UV exposure, preventing drying and cracking.

solar metal roofing bracket for trapezoidal roofing

Choose RibBracket to Help Simplify Alignment and Maximize Adjustability

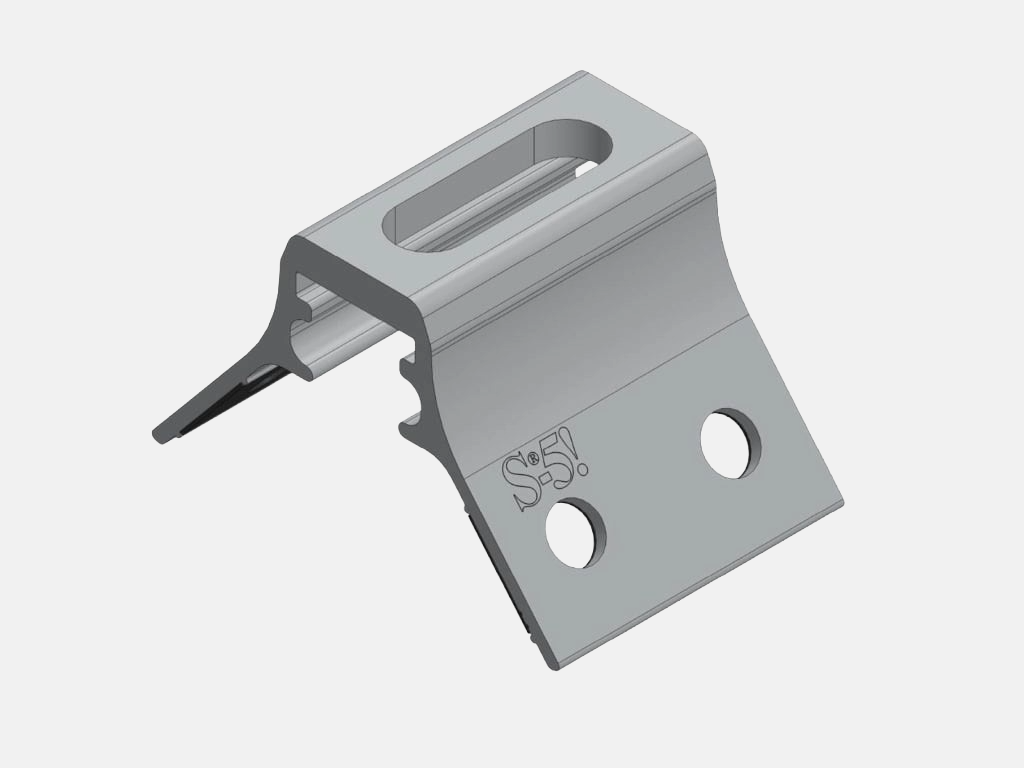

The RibBracket features a slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes adjustability in attaching ancillaries.

RibBracket is a structural aluminum attachment bracket, compatible with all common metal roofing materials and many North American trapezoidal profiles.

RibBracket is mounted directly onto the crown of the trapezoidal sheet using stainless-capped piercing screws (provided) or Bulb-Tite rivets (not provided). The sheeting-only attachment allows the bracket to be mounted anywhere along the rib.

RibBracket has been rigorously tested for load-to-failure results in sheeting-only. All pre-punched holes must be used to achieve tested strength.

Be sure to check out the many other features on the bracket overview page.

solar metal roofing bracket for trapezoidal roofing
RibBracket-metal-roof-bracket

MSRP:

Minor Box: $6.90 Qty: 45

Master Box: $6.67 Qty: 180

*Pricing above is per bracket in USD. Prices vary based on region and other factors. Pricing improves with order quantity. Broken boxes may be subject to handling charges. Call your Authorized S-5! Distributor for current pricing.

Project Configurator

RibBracket-metal-roof-bracket

RibBracket Works for the Following Roofs:

Spacer

Exposed-Fastened Trapezoidal

RibBracket-Dims-metal-roofing-bracket

Product Specifications:

  • Use on common North American exposed-fastened, trapezoidal-rib roof profiles
  • Slotted top hole accommodates standard M8 nuts and bolts
  • Stainless-capped, self-piercing screws specifically designed to maximize holding strength and prevent swarf; EPDM sealing washer
  • Sheeting-only attachment can be placed anywhere along roof ribs
  • 4 self-piercing screws and 1 M8 nut included
RibBracket-Dims-metal-roofing-bracket

Is the RibBracket the Best Choice for Your Roof Profile?

RibBracket fastens onto the crown of the panel, straddling the profile & accommodates rib profiles with top width dimension of 1.0” (25 mm).

How to Install RibBracket on Your Roof Profile*

No surface preparation is necessary. Simply wipe away excess oil and debris, align and apply. The RibBracket is mounted directly onto the crown of the panel, straddling the profile.

Secure through the pre-punched holes using the S-5! piercing screws supplied or Bulb-Tite rivets.

*See more detailed installation instructions in the PDF download below.

RibBracket Installation Instructions

Have More Questions?

Submit your information by clicking the form below, and we’ll get back to you almost immediately.

FAQs

How do I know what bracket fits my trapezoidal rib metal roof?
Can I use the RibBracket to mount snow guards?
How does S-5! ensure its brackets are weathertight?
Should I use additional sealant around the brackets?
